Microservices and Message Queues, Part 5: Building the first service

The previous article gave a high-level overview of the demo project’s architecture. It stated how we’d adopt the micro-service architecture, and that the demo project will be broken down into two smaller services. This article will walk us through building the first service, GetMeHired-producer. But first, let’s recap what this service is about.

As mentioned earlier, the GetMeHired-producer will serve as the producer of messages in our microservices and RabbitMQ architecture. Primarily, this service will receive an http request to perform a job search and publish the request as a message to RabbitMQ.

We will create one REST API endpoint in this service to implement the functionality we just mentioned. Users’ requests would come into the service through the endpoint. The endpoint we build will also be responsible for validating the email address in the payload, and publishing the request it receives to RabbitMQ.

However, for the sake of modularity, we will have separate functions or classes that handle the email validation and forwarding of requests to RabbitMQ. We will use FastAPI to implement this service. To begin, let’s set things up.

Also, note that the completed code for this project is hosted on GitHub. You can refer to it if you get stuck at any point.

Setting up the project

Take the following steps to set up your development environment and subsequently the project:

Step 1: Creating a virtual environment

• In your terminal, run python3 -m venv get-me-hired-producer-env on Unix and macOS or python -m venv get-me-hired-producer-env on Windows to create a virtual environment named get-me-hired-producer-env.
• Run source get-me-hired-producer-env/bin/activate on Unix and macOS or .\get-me-hired-producer-env\Scripts\activate on Windows to activate the virtual environment.

Step 2: Create a FastAPI project

With your virtual environment activated, take the following steps to bootstrap a FastAPI project.

• In your terminal run, code mkdir get-me-hired-producer to create a new directory for our project.
• In your terminal run cd get-me-hired-producer && touch __init__.py main.py requirements.txt Essentially, this command would navigate into the get-me-hired-producer folder and create three files in it: __init__.py, main.py, and requirements.txt

  If you are on Windows, the touch command will not work. In that case, only run the first part of the command to navigate into the newly created folder: cd get-me-hired-producer. You can then open the folder in the IDE you are working with and manually create the three files.

• If not done already, open the get-me-hired-producer folder in your favorite IDE, and then copy and paste the snippet below into your requirements.txt file.

  fastapi==0.75.0
  pika==1.1.0
  uvicorn[standard]
  pydantic[email]
  python-dotenv


  These are the external dependencies we will need in our project for now.
• In your terminal, run pip install -r requirements.txt This command will install all the dependencies listed in the requirements.txt file. Also, ensure that you are in the project directory in the terminal before running that command.
• Next, copy the snippet below and paste it into the main.py file

  from fastapi import FastAPI
  from fastapi.exceptions import HTTPException

  app = FastAPI()

  @app.get("/")
  async def root():
    return {"message": "Hello World"}


Step 3: Running the development server

Recall we installed a dependency named uvicorn in the previous step. To run our application locally and even on the cloud and have it receive and process requests, we will need a server program that could load our application. This is what uvicorn does for us.

Take the following steps to run our application with uvicorn and test it out:

In your terminal run uvicorn main:app --reload

In the output in your terminal, you should see this line INFO: Uvicorn running on http://127.0.0.1:8000 (Press CTRL+C to quit)

It shows the URL where your app is being served on your local machine. Also note that the command main:app --reload refers to:

• main: the file main.py (the Python "module")
• app: the object created inside of main.py with the line app = FastAPI()
• --reload: make the server restart after code changes - only used for development.

Lastly, open your browser at http://127.0.0.1:8000, and you will see a JSON like this: {"message": "Hello World"}

Step 4: Exploring the documentation page

One of the coolest things about FastAPI is that it generates a documentation page for your project out of the box. In our case, FastAPI has created a page that documents the rudimentary endpoint we just created.

To access the documentation page, first run the application (if not running already). Next, point your browser to http://127.0.0.1:8000/docs. You will be greeted with an interface like the one shown in the image below:

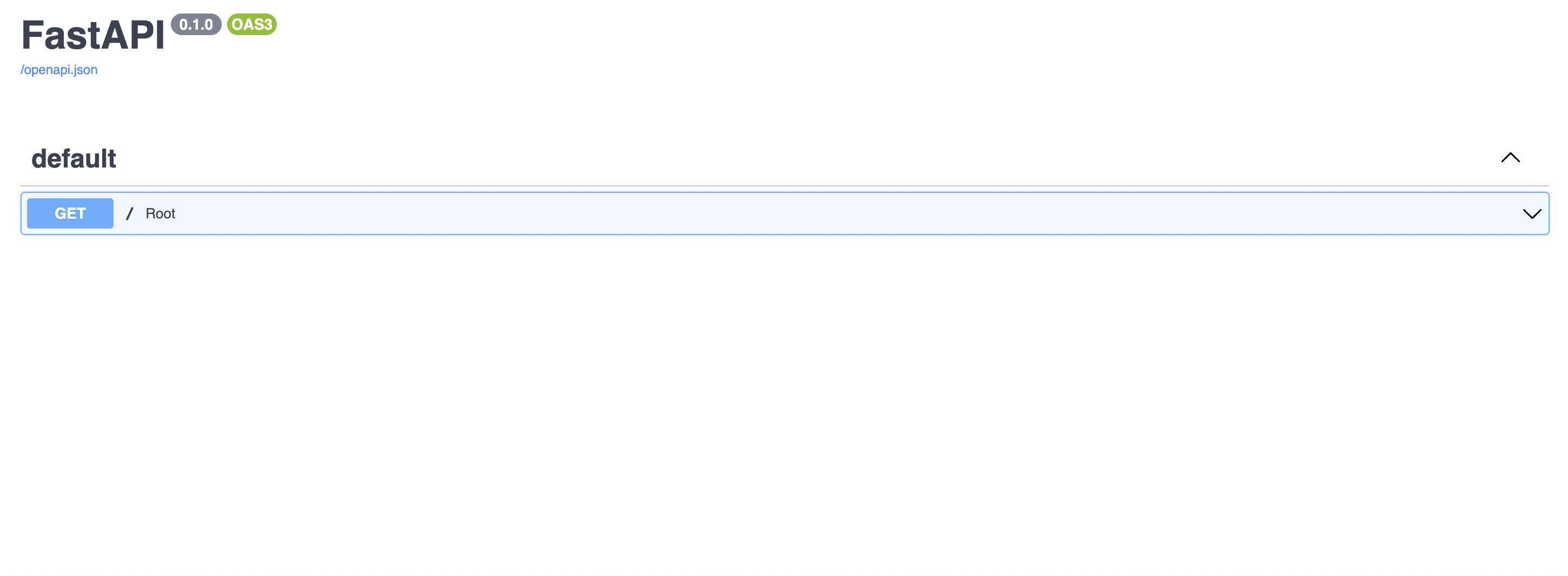

Figure 1 - FastAPI auto-generated docs

Note: In addition to listing all the available endpoints in your application(in our case only one endpoint - as shown in the image above), the documentation page also allows you to test those endpoints right in your browser.

To test an endpoint, click on the button labeled Try it out and, subsequently, the execute button. See the image below:

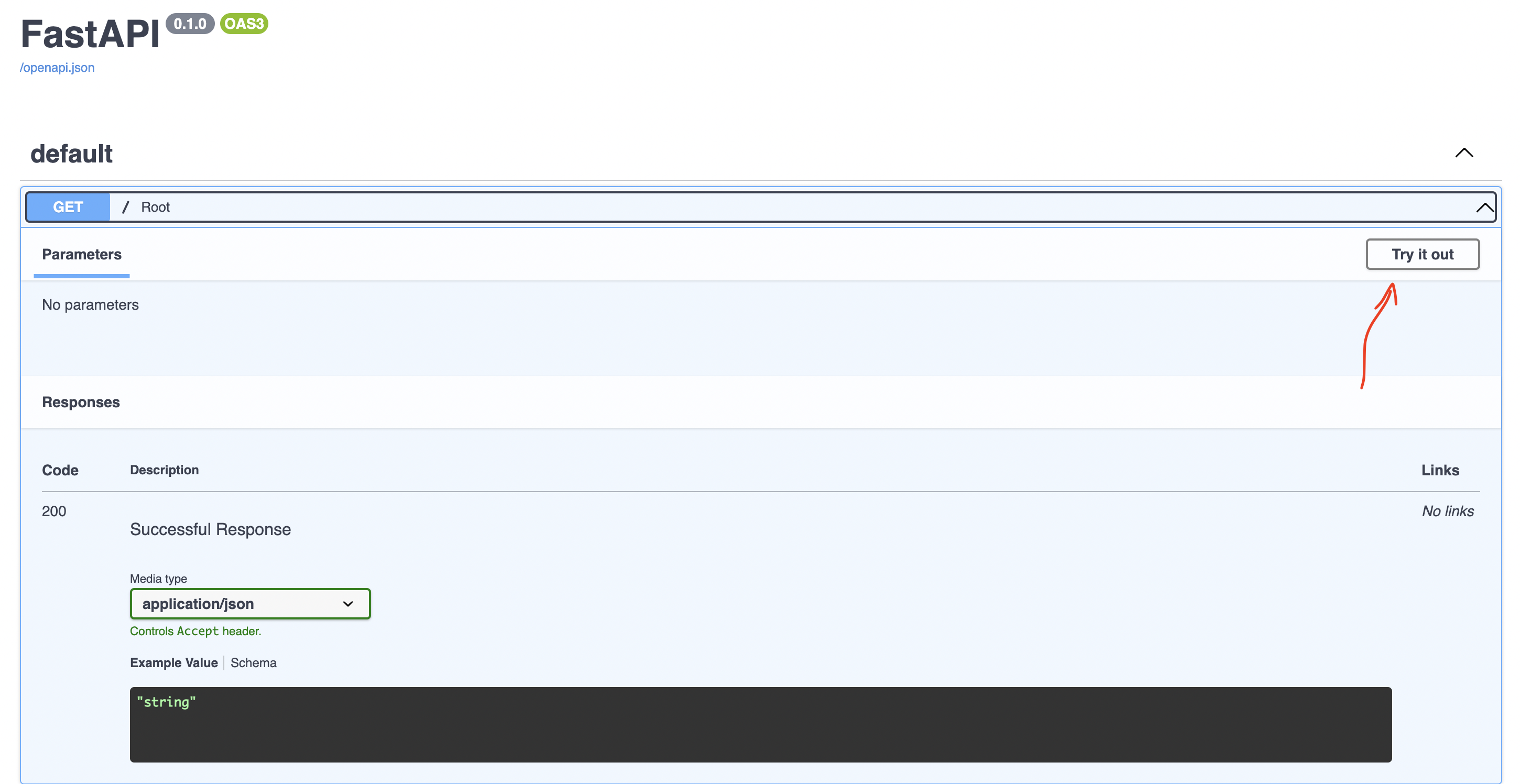

Figure 2 - Testing an endpoint

Creating the job search endpoint

We need to do three things to create our endpoint:

• First, we will create a helper function that we will use in validating if an email is valid or not
• Next, we will create a schema for the job search payload. Schemas are more like serializers in FastAPI
• Lastly, we will define the main endpoint that invokes the email validator and the schema and returns a response to the user

Step 1: Create the email validator function

Create a file validators.py in the project folder and add the snippet below to the file:

from email_validator import validate_email, EmailNotValidError

def is_valid_email(email: str):
  """Verifies the correctness of an email address"""
  try:
      # Check that the email address is valid.
      validate_email(email, check_deliverability=True)
      return True
  except EmailNotValidError:
      # Email is not valid.
      return False

The code snippet above uses a python package, email-validator, to verify the correctness of an email address. Note that this helper function is not very robust. It mostly just focuses on verifying if the email passed follows the right format - for example, 11@gmail.com would be considered a valid email address even though it most likely does not exist.

Step 2: Adding the input schema

Create a file schemas.py in the project folder and add the snippet below to the file

from pydantic import BaseModel

class JobsQueryModel(BaseModel):
  """ Defines the allowed format of job queries """
  search_term: str
  location: str
  email: str

  class Config:
    schema_extra = {
      "example": {
        "search_term": "Junior Python Engineer",
        "location": "Nigeria",
        "email": "spongebob@gmail.com"
      }
    }

Step 3: Adding the endpoint

To create the route for our new endpoint, replace the entire content of the main.py file with the snippet below:

from fastapi import FastAPI
from fastapi.exceptions import HTTPException
from schemas import JobsQueryModel
from validators import is_valid_email

app = FastAPI()

@app.get("/")
async def root():
  return {"message": "Hello World"}

@app.post("/jobs")
def find_jobs(jobs_query: JobsQueryModel):
  """ Accepts job queries and adds them to RabbitMQ """

  email = jobs_query.email
  search_term = jobs_query.search_term
  location = jobs_query.location

  # Verify that all request parameters are passed
  if email is None or search_term is None or location is None:
      return HTTPException(
          detail={'message': 'Error! Pass all request paramaters'},
          status_code=400
      )

  # Check if email is valid
  if not is_valid_email(email):
      return HTTPException(
          detail={'message': 'The email passed is not valid!'},
          status_code=400
      )

  return ("Your request has been queued, we will email the list"
          " of available jobs to you shortly"
  )

In the snippet above, we loaded the email validator function and the input schema with two new imports. We also added the find_jobs function that’s bound to the /jobs route.

This find_jobs function is the core of this service. First, it checks to see if all the required parameters are present in the payload; otherwise, it raises an exception. Next, it uses the utility function we defined to validate the correctness of an email address. It then returns a response to the user, letting them know that their request has been queued.

Ideally, we are supposed to push each request to our RabbitMQ instance on CloudAMQP, but we haven’t done that yet. Let’s implement that.

Before then, if you run your application at this point and go to the documentation page, you will see the newly created endpoint listed there. See the image below.

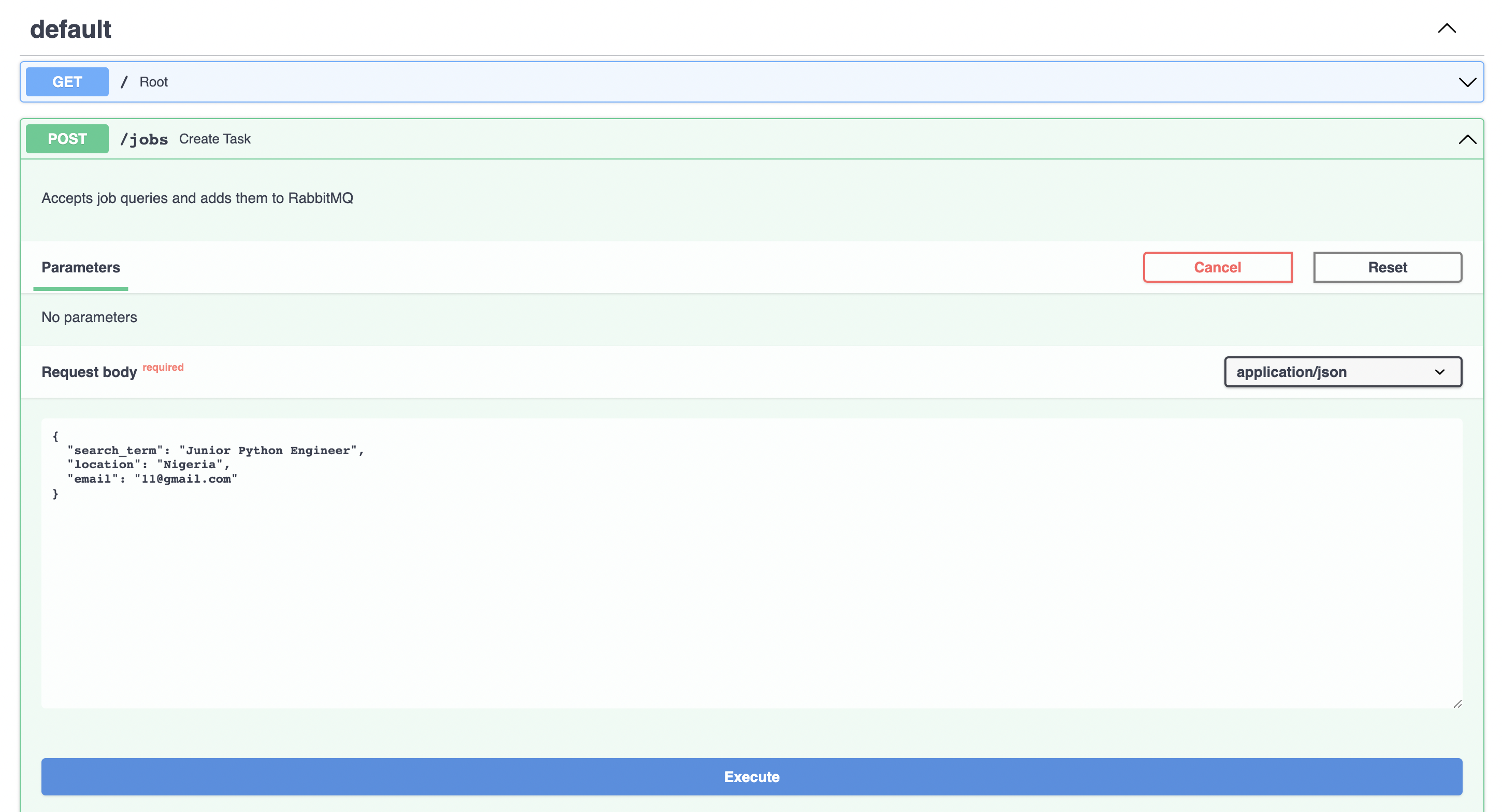

Figure 3 - Jobs endpoint documentation

Pushing requests to our RabbitMQ instance on CloudAMQP

To be able to connect our application to a RabbitMQ instance on CloudAMQP, we will need to take the following steps.

1. First, sign up with CloudAMQP to create a RabbitMQ instance if you haven’t done this already
2. Next, copy your instance’s credentials and add them to a .env file in the project directory
3. Implement a CloudAMQP utility class that will allow us to connect to CloudAMQP, create exchanges and queues and then publish messages
4. We will then invoke the utility class in our /jobs route and have it publish users' requests to CloudAMQP
5. As a bonus step, we’d also explore the RabbitMQ management interface to see the messages we’ve published

Step 1: CloudAMQP account and RabbitMQ instance

CloudAMQP can be used for free with the plan Little Lemur. Go to the CloudAMQP plan page and sign up for any plan.

If you are accessing CloudAMQP for the first time, you’d be prompted to create a team after login. Give your team any name and create a RabbitMQ instance by clicking the Create New Instance button in the image below.

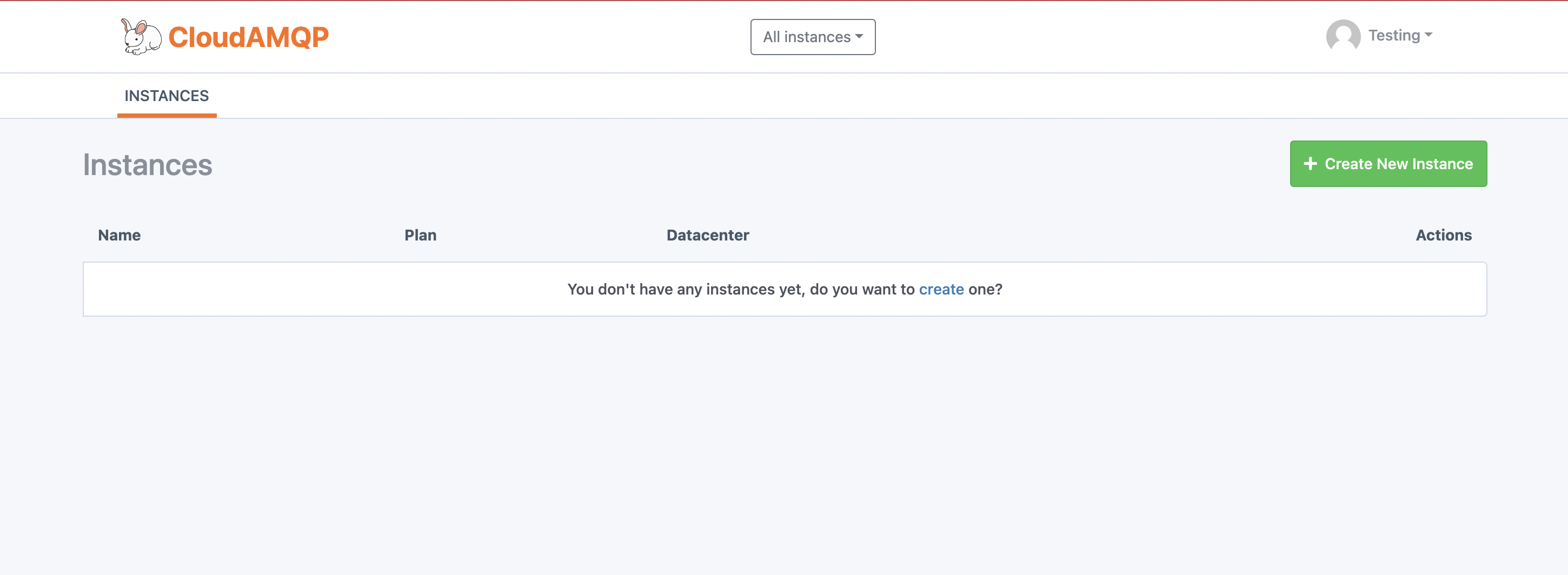

Figure 4 - CloudAMQP new RabbitMQ instance

On clicking the button above, you’d be prompted to give your instance a name (I called mine get-me-hired). Also, select a region and then proceed to create your instance.

Step 2: Adding CloudAMQP credentials to the project

With your instance created, click on the instance’s name to go to its page. You will be taken to the instance’s overview page. Go to the AMQP details sub-section on the page and copy the URL. See the image below.

Figure 5 - CloudAMQP URL

Next, create a file named .env in your project folder and paste the snippet below:

CLOUDAMQP_URL=your CloudAMQP URL here

We just created an environment variable that we will later access. Remember to update the variable with your correct CloudAMQP URL.

Step 3: Implementing the CloudAMQP helper class

Next, we are going to encapsulate the logic of connecting to CloudAMQP, declaring queues and exchanges, and publishing messages into a Python class. We will then use the class in our find_jobs function.

Create a file cloudamqp_helper.py in the project directory and add the snippet below to it.

import os,json
import pika
# from pika.exchange_type import ExchangeType
from dotenv import load_dotenv


# Load the .env file
load_dotenv()


class CloudAMQPHelper:
  """ The interface between this project and CloudAMQP """


  EXCHANGE = "get_me_hired_exchange"
  EXCHANGE_TYPE = "direct"
  QUEUE_NAME = "get_me_hired_queue"
  ROUTING_KEY = "jobs_search"

  def __init__(self) -> None:
      """ Sets up a connection and a channel when this class is instantiated """


      url = os.environ["CLOUDAMQP_URL"]
      params = pika.URLParameters(url)


      self.__connection = pika.BlockingConnection(params) # Connect to CloudAMQP

  def __create_channel(self) -> pika.BlockingConnection:
      channel = self.__connection.channel() # start a channel
      return channel

  async def __create_exchanges_queues(self) -> None:
      """ Declares a queue and an exchange using the channel created """
      # Get channel
      channel = self.__create_channel()
      # Create an exchange
      channel.exchange_declare(
          exchange=self.EXCHANGE, exchange_type=self.EXCHANGE_TYPE
      )
      # Create a queue
      channel.queue_declare(queue=self.QUEUE_NAME)
      # Bind queue with exchange
      channel.queue_bind(
          self.QUEUE_NAME,
          self.EXCHANGE,
          self.ROUTING_KEY # The routing key here is the binding key
      )


  async def publish_message(self, message_body) -> None:
      """ Publishes a message to CloudAMQP """
      # First declare an exchange and a queue
      await self.__create_exchanges_queues()

      # Get channel
      channel = self.__create_channel()

      channel.basic_publish(
          exchange=self.EXCHANGE,
          routing_key=self.ROUTING_KEY,
          body=json.dumps(message_body)
      )

      print ("[x] Message sent to consumer")

      self.__connection.close()

# Create an instance
cloudamqp: CloudAMQPHelper = CloudAMQPHelper()

In the snippet above, we, first of all, used the python-dotenv to load our .env file just so it’s accessible in our project. Next, we created the CloudAMQPHelper class that exposes one public method, publish_message.

In the next step, we will use the publish_message function to publish messages to RabbitMQ. We are not explaining the details of the code snippet because most concepts have been covered in Part 3 of this series.

Step 4: Forwarding requests/publishing messages to CloudAMQP

Here we will import the CloudAMQP instance we created in the previous step into our main.py file. We will then invoke the instance’s publish_message function in our find_jobs function.

To import the instance of the CloudAMQPHelper, we created the cloudamqp_helper.py file. Add the snippet below to the list of imports in the main.py file:

from cloudamqp_helper import cloudamqp

Next, add the snippet below just right above the return statement of the find_jobs function in the main.py file

# Publish request to CloudAMQP
await cloudamqp.publish_message(
  Message_body = {
      "email": email,
      "search_term": search_term,
      "location": location
  }
)

In the end, the content of your main.py file should match what we have on GitHub.

Lastly, to confirm that the published message has indeed been pushed to CloudAMQP, you can visit the RabbitMQ management interface. To do that, go to the overview page of your RabbitMQ instance on CloudAMQP and click on the Rabbit Manager button. See the image below.

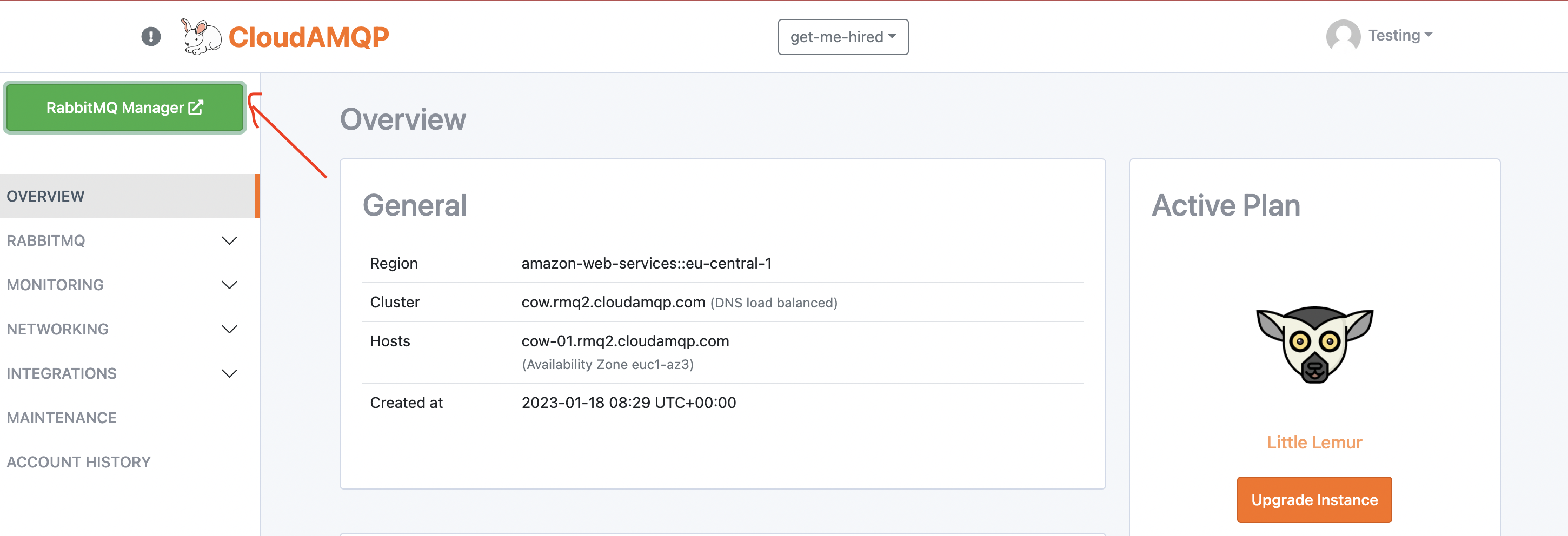

Figure 6 - RabbitMQ admin interface trigger

You will be taken to the RabbitMQ admin page. From there, select the Queues tab. If everything works, you should see the get_me_hired_queue listed on that page and the number of messages the queue holds(in my case 3). Clicking on the queue would also allow you to see other things like the bindings on the queue. See the image below.

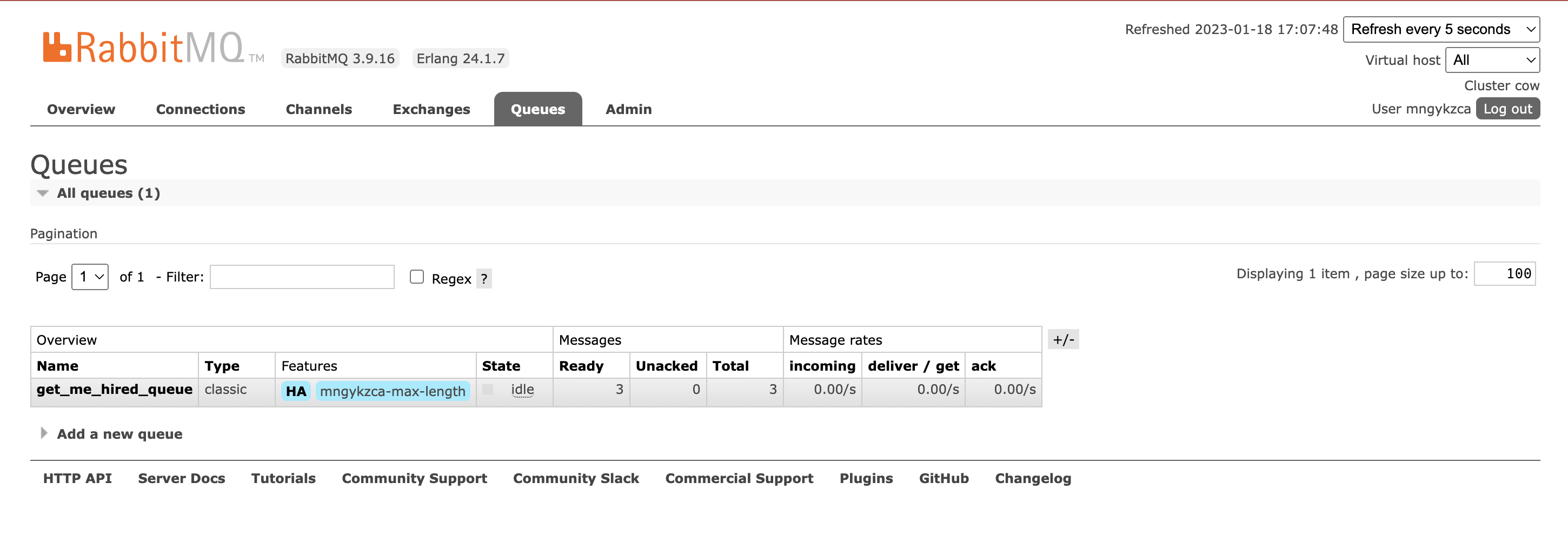

Figure 7 - Declared queues

And that's pretty much it.

Conclusion

In this article, we built a minimal REST API backend from scratch with FastAPI. Overall, we are seeking to implement a distributed architecture with two services, and this is the first service. The goal of this service is to have producers that receive requests from users and forward them to CloudAMQP.

The next article will walk us through implementing the second service that will serve as the consumer of messages in this architecture.

We’d be happy to hear from you! Please leave your suggestions, questions, or feedback in the comment section below or get in touch with us at contact@cloudamqp.com
